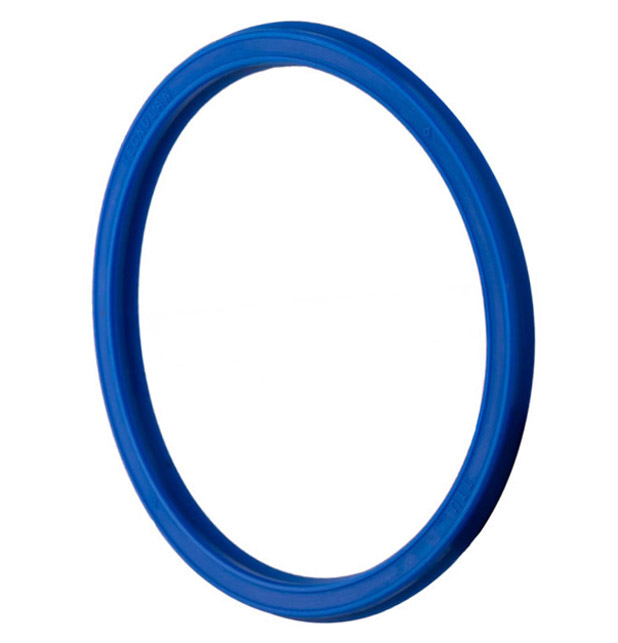

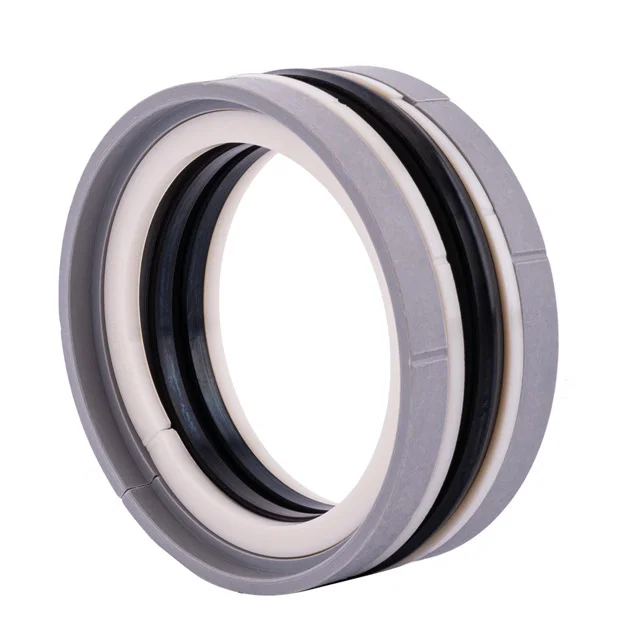

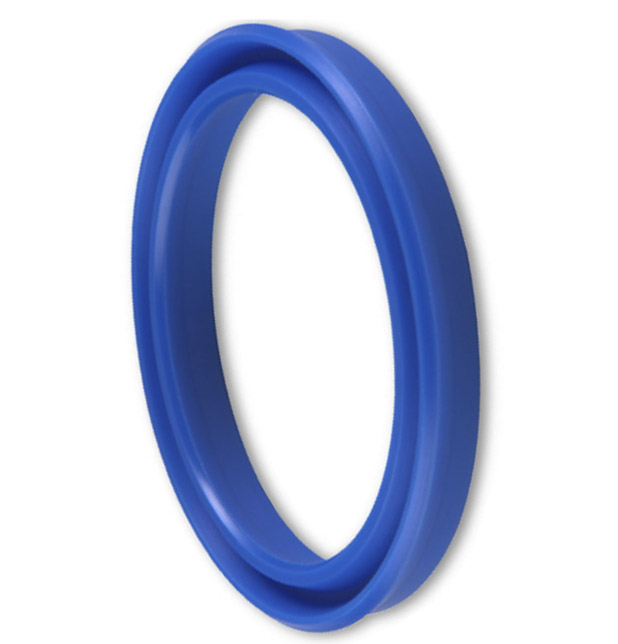

Guarnitec seals

Guarnitec is an Italian company that specializes in the production of seals for various industrial applications. Founded in 1969, Guarnitec is recognized as a world leader in the design, manufacture and distribution of seals specifically for hydraulics and offers a wide range of products for hydraulic equipment manufacturers. Their product portfolio includes various types of seals such as hydraulic and pneumatic seals, wiper rings, O-rings and other special seals.

Guarnitec focuses on the use of modern materials and innovative technologies so that their seals meet high standards for durability and resistance in demanding conditions. The company also places emphasis on adapting products to specific customer needs, which has earned it a strong reputation in various industries such as the automotive, engineering and energy industries.

Contact (Guarnitec seals)

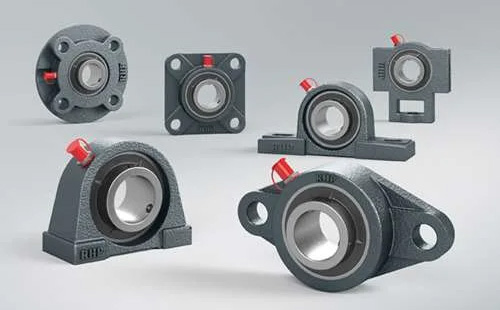

RHP-NSK premium bearing housing in a wide range

NSK is Japan’s largest manufacturer of bearings, rolling elements and linear guides with more than a century of tradition in precision engineering. NSK Ltd. is one of the world’s leading manufacturers of rolling bearings, linear guides and also components for the automotive industry. In 1916, they became the first manufacturer of ball bearings in Japan.

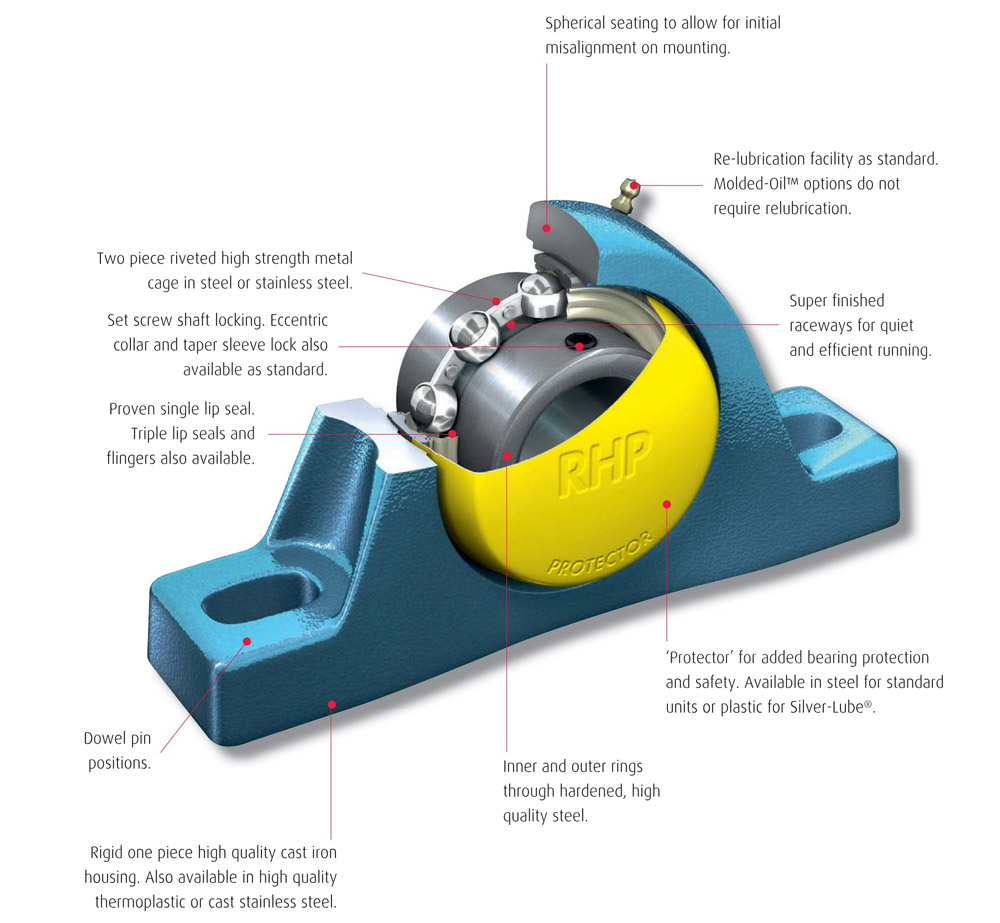

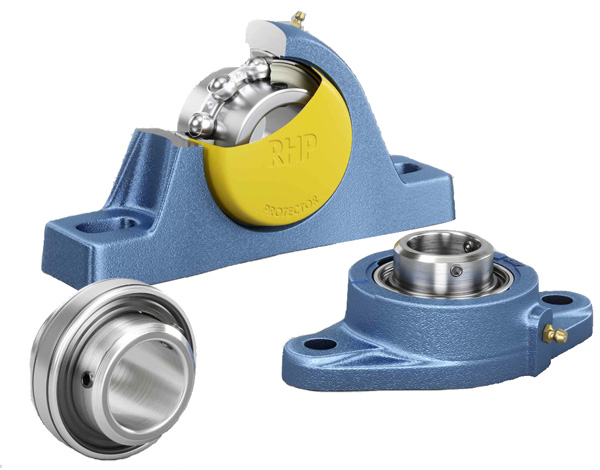

The bearing units consist of a single row ball bearing sealed on both sides and a housing in which the bearing with the curved outer ring is stored.

Clamping bearings in houses are structurally based on a single-row ball bearing, but have a rounded outer ring and a widened inner ring. Due to these design aspects, bearing units can compensate for shaft misalignment.

The bearing unit is most often clamped to the shaft using set screws or an eccentric ring. With this simple assembly, bearing units are used in most industrial applications.

Contact

CONTI POLYFLAT Elevator belt

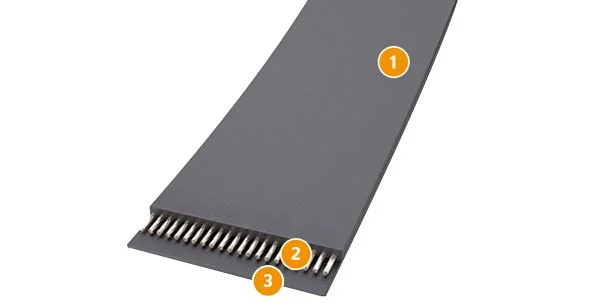

Technical specifications

1. Polyurethane pulley side

2. Steel cord tension member

3. Polyurethane backing

The steel-reinforced belts made of polyurethane are extremely flexible, hard-wearing, and durable. They are virtually corrosion-free due to their galvanized steel, and their polyurethane coating ensures anti-slip traction and more efficient power transmission.

PU belt reinforced with steel cord, type F 30 XHP, 12 steel cords per belt, 7 strands per steel cord, 7 steel wires per strand. In total 588 steel wires (152 steel wires in Conventional steel cord).

The steel wires are galvanized on the surface and thus ensure a corrosion-resistant design.

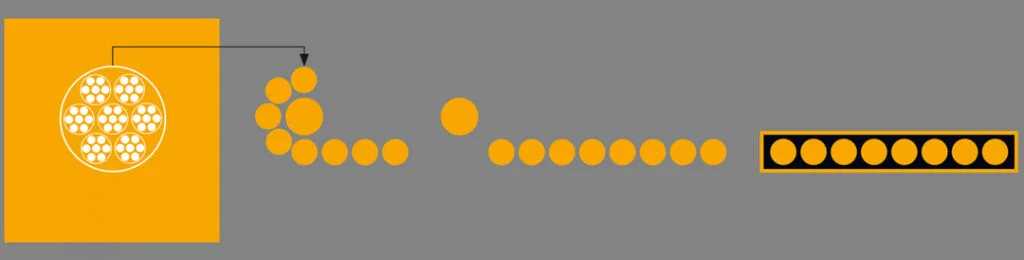

The horizontal arrangement of the traction ropes gives the belt a flat shape, which is advantageous especially for lifting and winding applications with the possibility of minimizing the diameter of the pulleys.

In case of specific application requirements, it is possible to produce a belt with aramid tensile fibers. They are rather more prone to breakage and sensitive to moisture, but characterized by resistance to aggressive chemicals and are antimagnetic.

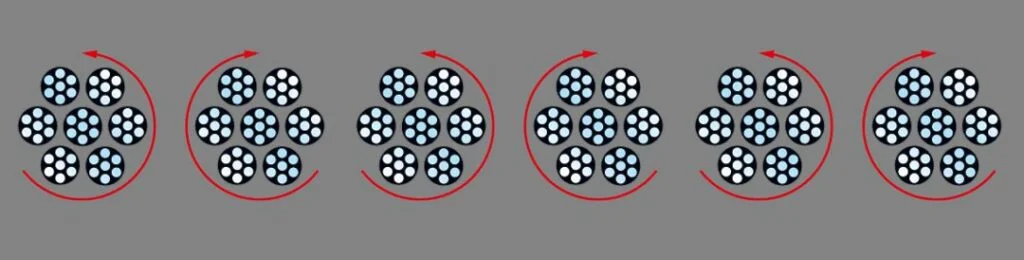

Storage system of tensile fibers

The uniform operation of the belt is ensured by the distribution of forces in the belt. This is achieved by the use of a special system of storage of tensile fibers.
The system is based on the alternating use of tensile fibers with left and right strand winding. This evens out unevenness and reduces the forces that would normally cause the belt to slide to one side. A belt with this tensile fiber storage system does not tend to twist or curl.

Service life

The service life of the steel cord-reinforced CONTI® POLYFLAT XPS and XPS II flat belts is three times as long as that of belts with conventional steel cords under the same operating conditions. If all the conditions specified in the CONTI® POLYFLAT catalog are met, a service life of several million cycles spread over 10 years can generally be expected. The traction test over the number of cycles also demonstrated the system’s wear resistance.

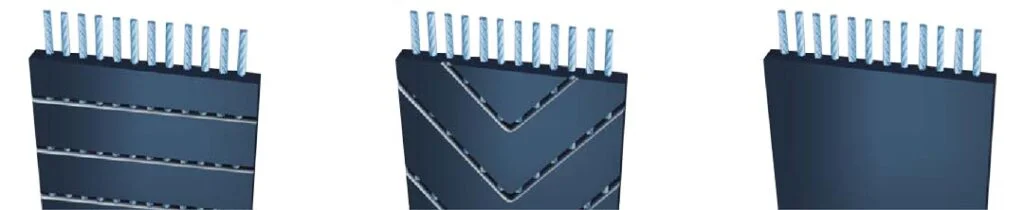

Conti®Polyflat: Versions

The ContiTech production program includes belts of various designs and prices due to the specific difficulty of producing belts with the necessary characteristics.
Two-stage production also offers the possibility of other grooving shapes. Three-stage production allows the application of another layer.
In the case of belt grooving, it concerns requirements for perfect running smoothness, or maximizing resistance to external influences by completely covering the tensile fibers.

Properties

The properties of the CONTI® POLYFLAT PU flat belt open up many new areas of application, e.g. in lifting systems, car wash installations, forklifts, handling devices and scissor-lift tables.
The belt is selected on the basis of the circumferential force to be transmitted for the pulley size concerned.
Breaking strength of the belt approx. 3 x Fzul (max)
Elongation of the belt approx.0,6 % pri Fzul (max)

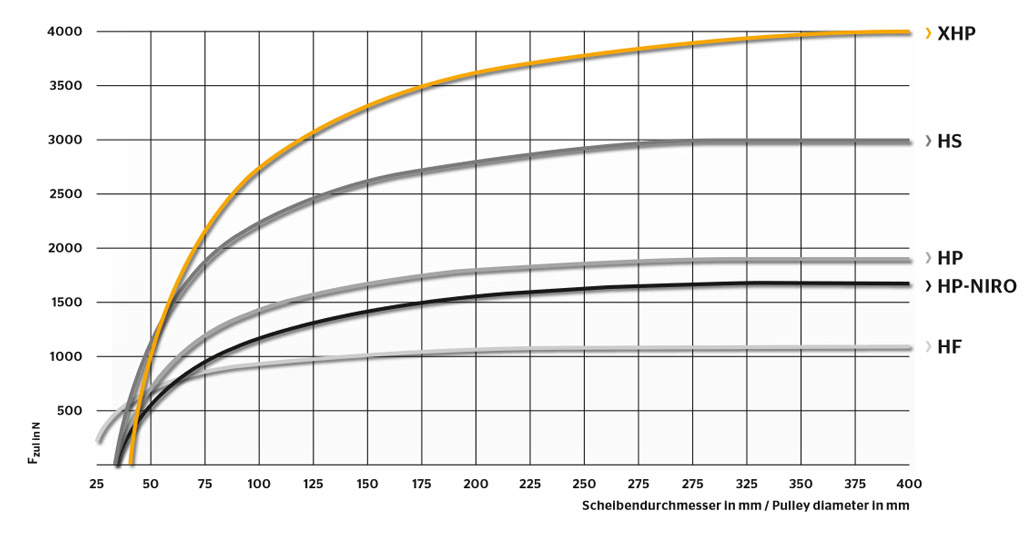

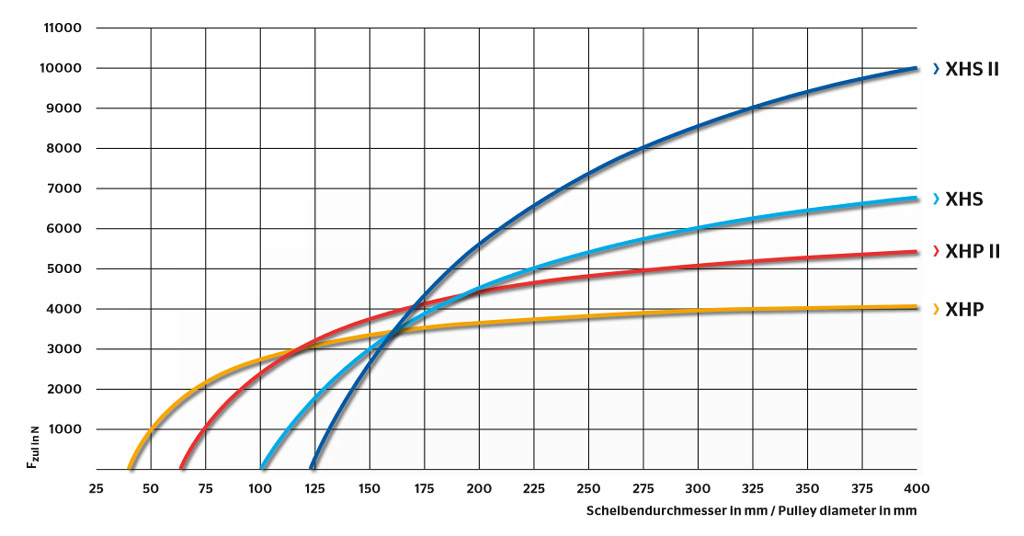

Fzul as a function of the pulley diameter (normalized for 10 mm belt width)

Contact

The toothed side of the belts can be in HTD or STD profile. Depending on the power to be transmitted, they are available with glass cord tension member (STANDARD and CXP), or with aramid tension member (CXA).

The ribbed belt side is in PK profile with a rib spacing of 3.56 mm. These are very special belts, produced in only a few specific lengths and widths, which are determined by the number of ribs.

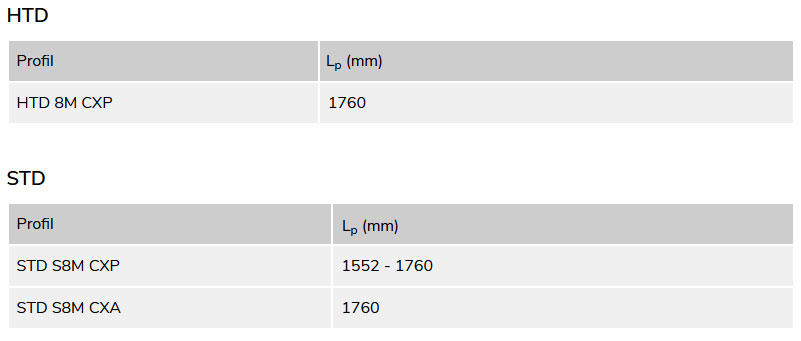

CONTI SYNCHRORIB: Dimensions

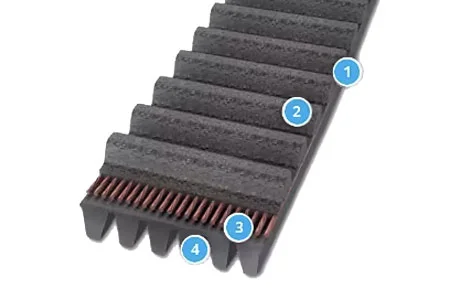

CONTI SYNCHRORIB CXP/CXA: Technical specifications

1. Polyamide fabric
2. Synthetic rubber teeth
3. Glass cord tension member (CXA: Aramid tension member)
4. Synthetic rubber ribs

CONTI SYNCHRORIB

• Timing belt with the possibility of slipping on the ribbed side
• Temperature resistant between -20°C and +100°C, depending on the application
• Antistatic in accordance with ISO 9563
• Moderately oil resistant
• Ozone resistant
• Resistant to aging
• Suitable for use in tropical climates
• Maintenance-free
• Low content of polycyclic aromatic hydrocarbons category 2 according to AfPS-GS-2014-01-PAK (for versions CXP and CXA)

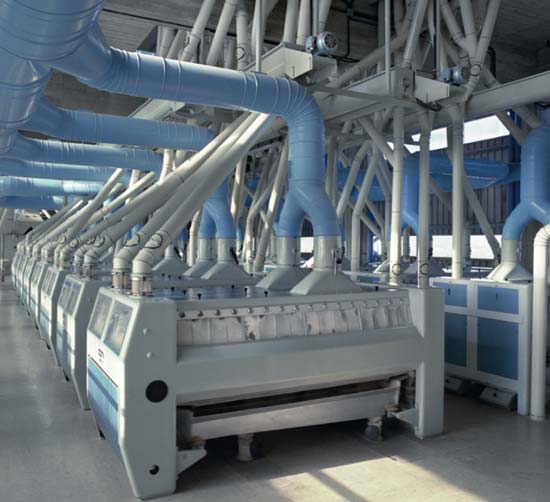

CONTI SYNCHRORIB Belt for the modern mill

A traditional mill used stones that revolved around each other to grind grain, while a modern mill uses grinding wheels to make flour.
The drive of the rollers in grinding chairs is usually provided by an electric motor, which transmits its power to the rollers by means of belts. The type of belt depends on the specific parameters of individual machines.
The CONTI SYNCHRORIB combination belt is a reliable and economical choice for a wide range of modern mills.

Contact

These belts have already been added to our e-shop under the new designation Conti®VX Advance.

CONTI-V FO PIONEER v-belts, which were known for their blue color, are now produced in a new black version and under the new designation Conti®VX Advance. From a technical and performance point of view, there are no changes. The materials used to make these belts remain unchanged. As we mentioned in the previous news on our website, within the Continental CONTINUITY project, the names and performance ranges of the belts in the entire ContiTech portfolio are unifying.

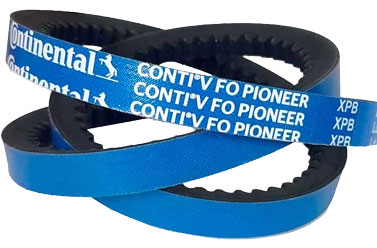

CONTI-V FO PIONEER

In the past, the CONTI-V FO PIONEER v-belts were the only ones from the ContiTech range that did not use the company’s design, i.e. black rubber with yellow or white printing. In the case of the new CONTI VX ADVANCE belts, a significant visual change occurs at this stage. Blue CONTI-V FO PIONEER belts and black Conti®VX Advance belts have exactly the same characteristics. It is not necessary to change the construction, the method of assembly, the setting of the preload or the method of operation.
By using a different color of the outer cover textile, the blue backs of the belts, which are most visible when fitted in gears, turn black. The design of their print will also change.

Extended offer

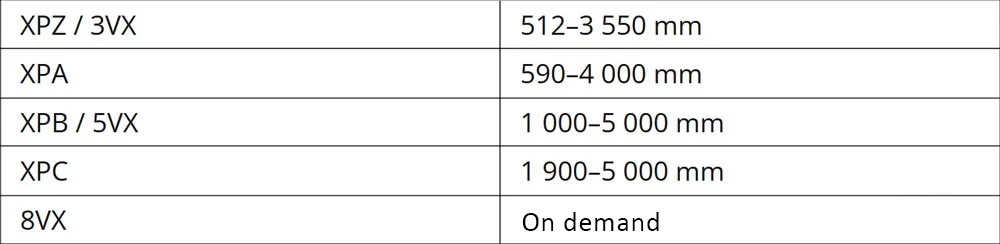

The range of manufactured sizes is expanding:

• All profiles will be able to be produced up to a length of 6,850 mm (previously a maximum of 5,000 mm), which increases the possibilities of their application in transmissions with the highest outputs, even in the hundreds of kW.
• New dimensions will be added in the 8VX profile.

History of EPDM belts from ContiTech

First generation: CONTI-V FO PIONEER

More than ten years ago, in 2013, we acquired the first ContiTech FO PIONEER belts. At that time, it was a radical shift in the possibilities of using V-belts. The key innovation introduced by Continental as the first manufacturer of V-belts at the time was the use of an EPDM rubber compound. Unlike traditional rubber materials, this synthetic rubber offers significantly higher resistance to temperatures, up to 130°C.

Second generation: CONTI-V FO PIONEER

The introduction of the second generation of CONTI-V FO PIONEER belts in 2018 represented another important milestone in the ContiTech portfolio.
These innovative belts have an optimized tooth design that ensures flexibility even when using external idler pulleys. They were made of a more durable, fiber-reinforced EPDM compound. The performance of these belts has increased by approximately 5.5% compared to the first generation belts. Special tensile fibers compensate for the loss of preload due to temperature during operation.
These belts are considered maintenance-free in many applications. The new composition of the EPDM material also made them the first V-belts with a lower content of polycyclic aromatic hydrocarbons (PAU/PAH), thus meeting the requirements for health and environmental protection even during long-term use.
When replacing existing classic V-belts with CONTI-V FO PIONEER belts, significant energy savings occur.

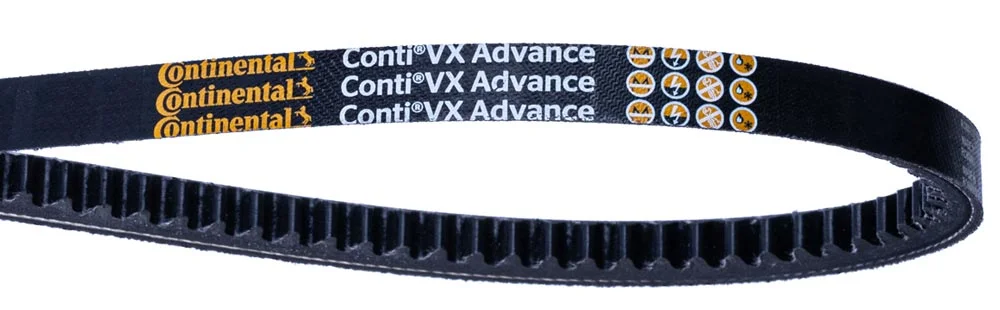

Third generation: Conti®VX Advance

The new V-belt Conti®VX Advance will be used similarly to its predecessor CONTI-V FO PIONEER, primarily in compressors, construction machines, grinding saws, fans, blowers or pumps.
This belt is designed for the transmission of the highest performance and is characterized by high heat resistance. It meets the standards for electrical conductivity according to ISO 1813 and is made with a lower content of polycyclic aromatic hydrocarbons (PAU/PAH).

Contact

The old designations of the product lines of ContiTech industrial belts are replaced by new names.

Continental is completing the global harmonization of its assortment and changing the naming structure of its products. This also includes changing the names of the ContiTech industrial drive belts that we have known until now.

The CONTINUITY project provides information support for this significant change.

Continental CONTINUITY

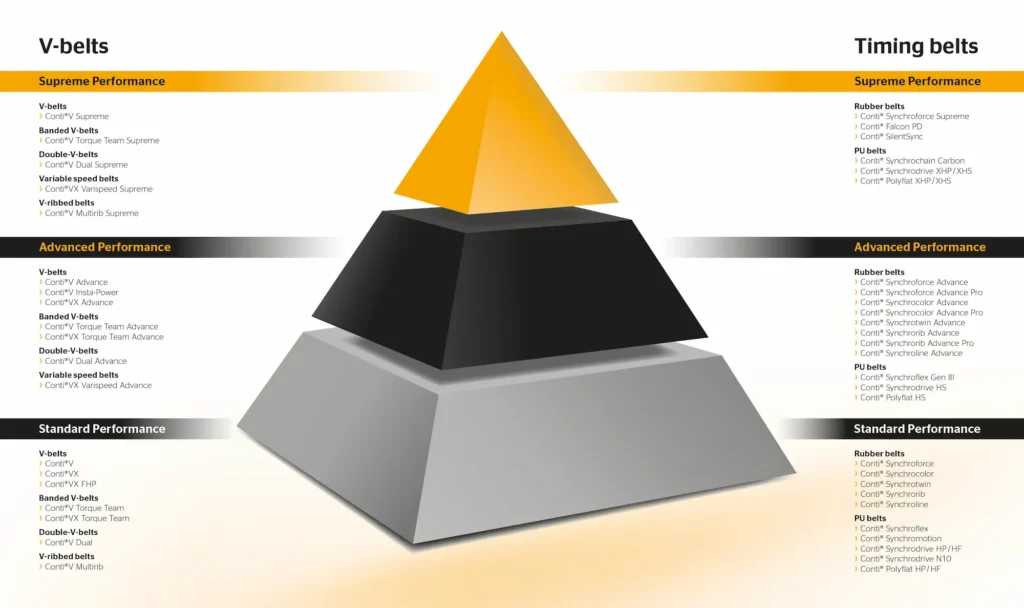

The belts will be divided into three main categories according to the requirements of the application, which is also reflected in the design of the logo on the belt.

SUPREME

Highest quality for maximum efficiency and extremely long service life, especially in complex drive systems with individual requirements.

ADVANCED

The solution for reliable power transmission even at high power outputs and speeds and for applications in demanding environments in terms of media, dirt, dust or temperature.

STANDARD

The first choice for reliable and, at the same time, cost-effective power transmission in standard applications.

Nová štruktúra názvov

V-belts

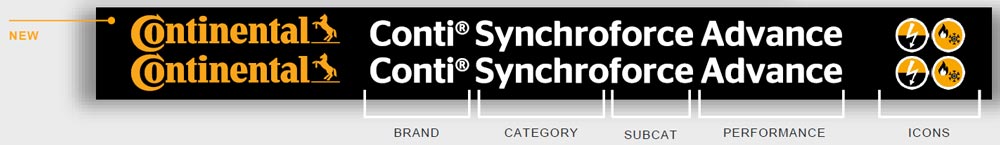

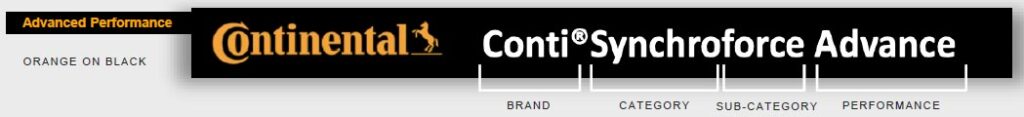

New profile and naming formula

Timing belts

New profile and naming formula

Conti SilentSync

New profile and naming formula

Benefits of changes

• Premium looks for premium belts
• Globally uniform marking and naming with transparency
• Simple identification
• Performance improvements
• Global product launches
• More flexible supply

Motivation for change

After acquiring Veyance Technologies in 2015, the American manufacturer of Good Year belts, Continental became the largest global manufacturer of belts.

The diversity of the portfolio and the diversity of regional offers led to the decision to unify and simplify the product structure.

The goal is to achieve a unified brand identity, increase the efficiency of production and distribution. The same type and name will be used by customers in all regions of the world.

Contact

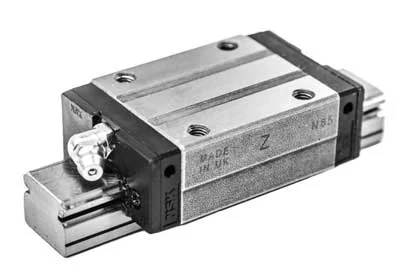

Discover the Latest Innovations in Linear Technology: NSK linear ball guides 2024

We are proud to present to you the latest innovation from the renowned manufacturer NSK – ball linear guidance of the NH/NS series, which comes to the market as a modern successor to the popular LH/LS series, HA/HS series: for super precision machine tools, PU/PE series : perfect for precision manipulations and LW wide rail ball linear guide series: designed for precision engineering and material handling.

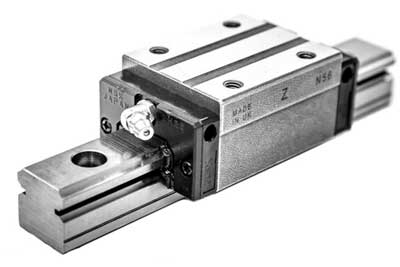

Introduction Series NH/NS:

Linear ball guides of NH/NS series, which comes to the market as a modern successor to the popular LH/LS series (the NH / NS series also replaced the older SH / SS series).

These are the most commonly used products of the NSK brand, which are intended for a wide range of engineering applications and material handling.

These products are characterized by a high load capacity in the vertical direction.

The design of the linear guide makes it possible to slightly compensate for some assembly errors.

When designed with a lubricator and K1 wiper seal, long-term maintenance-free operation is ensured and the lifetime of the linear guide is extended to the maximum.

Main Advantages NH/NS Series:

• High Precision: Optimized design ensures precise movements.
• Exceptional Load Capacity: Up to 30% higher dynamic load capacity compared to the LH/LS series.
• Unique Speeds: The possibility of reaching a speed of up to 300 m/min.
• Long service life: The service life is twice as long compared to older models.
• Wide range: Various types available for universal use.
• Availability: Excellent stock availability for fast delivery.

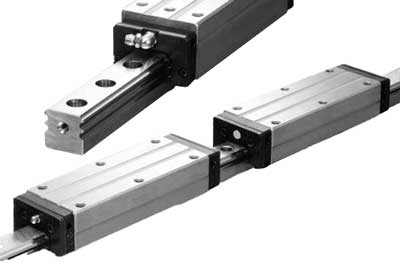

HA/HS series: For super precise machine tools or measuring devices

Thanks to the long carriage and optimized construction, this linear guide offers unsurpassed movement accuracy.

Also, long-term maintenance-free operation and a long service life are ensured when using a lubricator and K1 wiper seals.

The HA/HS series is characterized by:

• Maximum precision: Ideal for precise applications.
• Low friction: Ensures smooth operation.
• High load capacity: Guarantees reliable performance even under heavy loads.
• Compact design – high rigidity

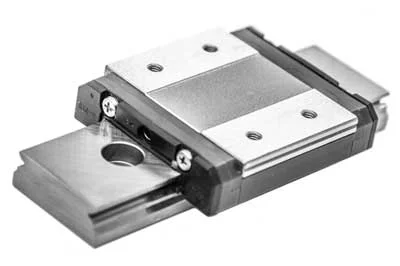

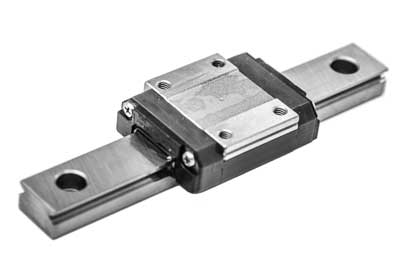

Miniature linear ball guide of the PU/PE series: Perfect for precise manipulations

For applications where low weight, compactness and smooth operation are key, NSK comes up with a solution in the form of a miniature linear ball guide of the PU/PE (formerly LU/LE) series, which is produced in several accuracy classes. With a stainless steel finish and smooth running, this lead is ideal for optical instruments, precision manipulation and engineering.

Characteristics Series PU/PE:

• Low weight: 20% lighter compared to previous models.
• High precision and smooth operation: For optimal work with your devices.
• Small installation dimensions: Enables easy integration into your systems.
• Stainless steel design: For a long service life even in demanding conditions.

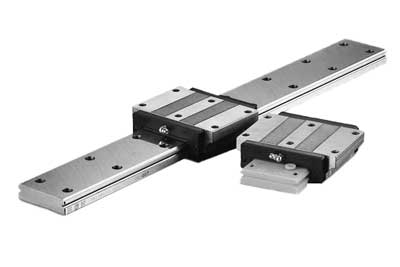

Linear ball guide with wide rail LW: The solution for precision engineering and material handling

The LW wide rail is suitable for a single-rail motion solution.Linear guide for high load capacity and high tipping effect in the vertical direction.

This type offers high resistance to shock loads and is available in several accuracy classes.

Even with this type, relubrication with a lubricator and sealing with an NSK K1 wiper seal can be used, thus ensuring maintenance-free operation and extending the service life.

Catalogues:

Contact

An introduction to innovation and reliability: Chiaravalli motors and gear boxes 2024

Nowadays, when automation and efficiency are at the forefront of every business’s priorities, electric motors and gear boxes have become an integral part of modern industrial applications. Our commitment to providing clients with only the best has led us to the latest expansion of the offer – we are proud to announce that we have expanded the range to include motors and gear boxes from the renowned Italian brand Chiaravalli.

Chiaravalli: Synonym for quality and innovation

Chiaravalli, a distributor and manufacturer of motors and various types of gear boxes, is synonymous with advanced technology and innovation. Their products are designed to be used in a wide range of applications – from conveyors, to CNC machine tools, to specialized machinery. The CHT series of electric motors is the result of precise engineering work that guarantees their seamless integration with transmissions.

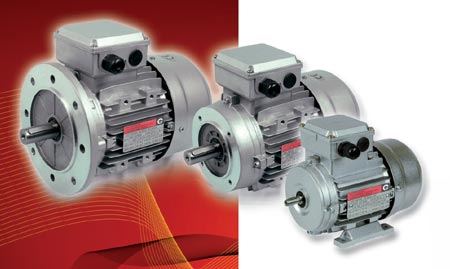

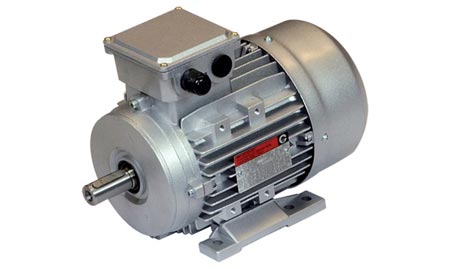

Electric motors Chiaravalli – CHT

Chiaravalli electric motors are equipped with cage rotors and external surface ventilation, which ensures their high efficiency and durability. They comply with strict international standards, including IEC 34-1 and CEI2-3, they also comply with the European ROHS Directive 2002/95/CE and comply with IEC 72 and UNEL-MEC national standards in terms of performance and dimensions. Businesses can therefore trust a product that meets both performance and regulatory expectations. With IP55 protection and Class F insulation, these motors are designed for continuous S1 operation in harsh conditions, making them the ideal choice for modern industrial applications.

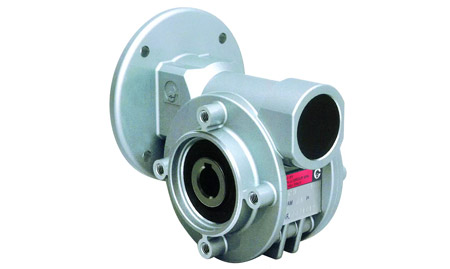

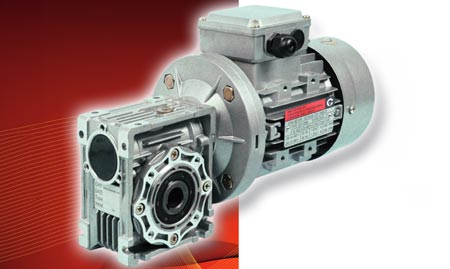

Chiaravalli gear boxes – CHM and CH

Our new offer includes two lines of worm gearboxes: CHM and CH, which are characterized by a variety of gear ratios from 1:5 to 1:100, with the possibility of increasing these ratios when using specific configurations. Small gear boxes (CHM 25 – CHM 90, CH) are made of aluminum alloy, sizes CHM 110, CHM 130 and CHM 150 are made of cast iron. Due to the flexibility and wide range of applications, these gear boxes are the ideal solution for various industrial needs.

The gearboxes are supplied with complete accessories and oil filling, while synthetic oil is used for most models and mineral oil for CHM 110, CHM 130 and CHM 150.

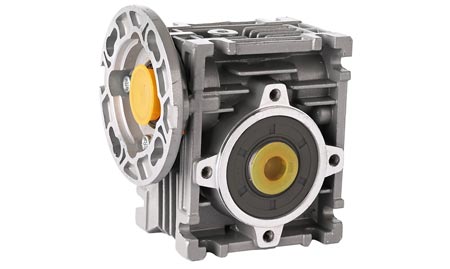

CHM gear boxes

Worm gear boxes with square construction designed for versatile assembly. Thanks to production secured by numerically controlled machines, maximum precision and adherence to strict tolerance values ​​are guaranteed. This fact contributes to the high reliability of the final product for a long time.

CHM gear boxes have at least one filling hole, which also serves as a check for possible leaks.

The Chiaravalli brand does not forget the possibilities of expansion and modification – mounting flanges allow combining two gear boxes to achieve higher gear ratios.

Gear boxes CH

The new series of CH worm gear boxes, developed by Chiaravalli, has been designed to meet market demands for a product that does not require changes to existing drawing documentation and at the same time guarantees an uninterrupted supply of spare parts. Thanks to technical innovations and improvements, this series offers easier product application for different mounting configurations, thus ensuring optimal flexibility and delivery dates.

Key benefits include a motor mounting flange that is completely separable from the gearbox body, minimizing the risk of oil seal damage when changing the input flange. In addition, all side covers, flanges and transmission feet are equipped with O-rings instead of traditional flat gaskets. Sizes 03-04-05 allow the mounting feet to be rotated without having to dismantle them.

Improvements have also been made to worm wheels with a ZI involute profile, thanks to which the gear boxes achieve better results in reducing heating. All bodies of electric motors and gea rboxes are provided with a protective aluminum coating RAL 9022, which protects the parts from aging and effectively covers small irregularities in the aluminum alloy.

All CH gear boxes are supplied complete with synthetic filling and are therefore maintenance-free and can be mounted in any mounting position.

Commitment to excellence and sustainability

Our collaboration with Chiaravalli is not just about expanding our product offering; it’s also about sharing a common commitment to innovation, quality and sustainability. By offering products that are not only at the cutting edge of technology, but are also designed with the environment in mind, we want to give our customers the opportunity to take a step forward towards a more efficient and responsible business.

With our latest range expansion, we are confident that we can better meet the technical and quality requirements of our customers and provide them with products that are synonymous with reliability and efficiency. Welcome to the world of precision and quality with Chiaravalli.

Catalogues:

Contact

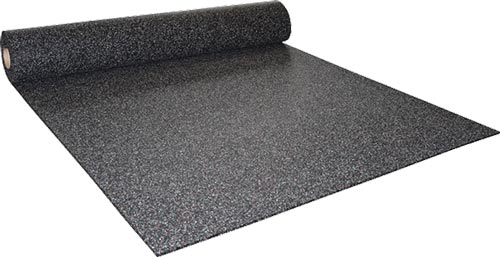

Contact (recycled rubber SPECIAL PLUS)
